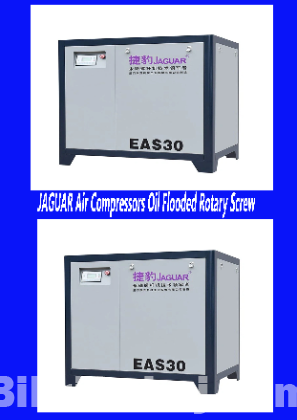

JAGUAR Air Compressors Oil Flooded Rotary Screw

For sale by: Osmo Corporation, 06 Sep 2024 01:49 pm Location: Dhaka, Dhaka, Banani

Tk 500,000

Negotiable

Shere This Ad:

Send Email to Seller

Product Introduction:
JAGUAR oil-flooded rotary screw air compressor offers the time-proved technologies with the new features that ensure the high level of reliability, stability and efficiency available. The compressor oil injected into the compression chamber to lubricate and cool the compressor element.

Product Description:
1. Model: EAS30
2. Max air displacement: 3.4m3/min
3. Voltage: 380V50HZ/3 Phase
4. Power: 22KW/30HP
5. Pressure: 8BAR
6. Size: 1180*800*1200mm
7. Weight: 500KG
8. Lubrication Style: Lubricated
9. Cooling System: Air Cooling
10. Power Source: AC Power
11. Cylinder Position: Horizontal

Product detail:
1. Air filter element: the air filter element helps to filter the air from dust and dirt.
2. Intake valve: the intake valve can control the loading and unloading of the air compressor and the airflow and air pressure.

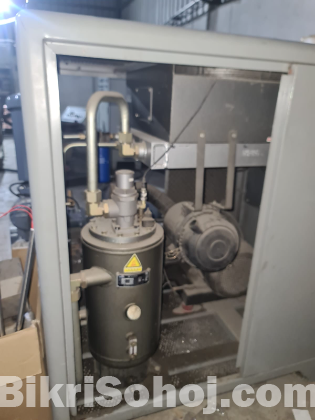

3. Air-end: The air-end is the main component of the compressor. During the compression process, the lubricating oil injected into the air-end lubricating and sealing off the clearances between the dual rotors.
4. Motor: The motor could provide sufficient power for the screw compressor.
5. Oil tank: The function of the oil tank is to separate the oil and gas.
6. Ail cooler: The air cooler could help reduce the temperature of air and gas.
7. Oil filter: The oil filter helps to filter oil from dirt and dust; the filtered oil will continue to participate in the compression cycle.
any information plz call 01678043952, 01741780475
