Basic Information
Base Frequency
2.90 GHz
Maximum Turbo Frequency
4.10 GHz
Cache
9 MB SmartCache
Cores
6
Threads
6
Default TDP
65 W
Memory Specifications
Maximum Size
128 GB
Maximum Speed
2666
Type
DDR4
Max Number of Channels
2

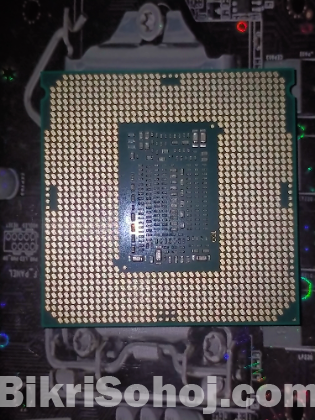

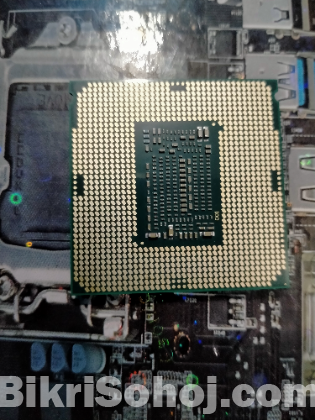

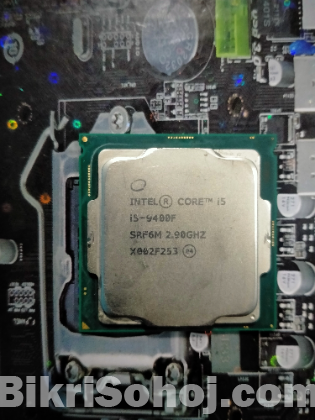

Intel 9th Gen Core i5 9400F Processor
This processor with the suffix "F" in the name is a new breed that come with a disabled integrated GPU, so a separate graphics card is required for its functionality. This new 9th gen Coffee Lake microarchitecture is manufactured with the 14nm process that comes with six cores but lacks in HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 300-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 300-series lineup

Core Benefits of the Processor
Intel 9th Generation Core i5-9400F Processor having the base frequency of 2.90 GHz that can be reached as max turbo frequency at 4.10 GHz. It has the L3 SmartCache of 9 MB containing 6 cores and 6 threads. With the bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 64W. This latest microchip has few expansion options such 3.0 PCI express revision having configured up to 1x16, 2x8, 1x8+2x4 and maximum 16 lanes. Considering the memory this processor has dual channel of max 128GB of size that supports up to DDR4-2666 bus speed.
