Negotiable

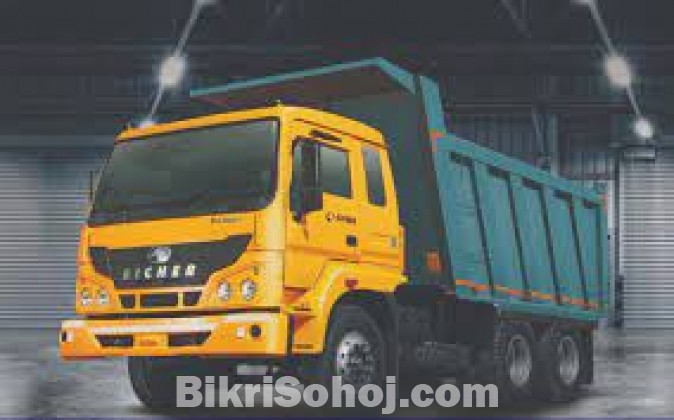

                                            EICHER PRO 5025T
The 25 Ton GVW Tipper.
আমাদের চেসিস/পিকআপসম্পর্কে আরো জানতে চাইলে সরাসরি আমাদের সাথে যোগাযোগ (০১৭১৫-১৭৪৭৯৮/01796-940928) করুন, ধন্যবাদ ।
TECHNICAL SPECIFICATION
SPECIVICATIONS EICHER PRO 5025T

GVW 25000kgs
Engine 5883cc
Max. Power 180HP @ 2500rpm
Max. torque 685 Nm @ 1500rpm
Clutch type coil spring push type with booster assisted
Clutch dia 380mm
Gear Box ZF 110TD (8 Forward, 1 Crawler € 1 Reverse) with cable operated gear shifting mechanism.
Gear Ratio 1st (Crawler) :12.73, Reverse : 12.04
Rear Axle Maritor makes Banjo type Axle.
Rear Axle Ratio/FDR 6.833
Front Axle Meritor makes Banjo type Axle.
Chassis Type Rolled C-Channel straight Frame, 285x76x7 mm.
Service Brakes Dual circuit, full S-cam Air.
Suspension Front Semi-elliptical leaf spring w/o Anti-roll Bar.
Pension Rear Hendrickson’s Bogie suspension with 11 leaves (27mm)
Cabin Hydraulic Tilt-able Sleeper Cabin
Steering Tilt and Telescopic power Steering.
Grade ability 43%
Max Speed 70 KMPH
Fuel Tank 220 Ltr
Electrical System 24 V
Battery 150 AMP
Tyre Size Front-Std. 10X20-16PR (Rib Pattern)
Rear € Spare-Std. 10x20-16PR (Lung Pattern.
Wheel Rim size 7.5x20
TCD 15.8m
Ground clearance 252 mm
Wheel base 4000 mm
Body size 16 Cum
Body Dimension (mm) 4580x2330x1350
Body Sheet Thickness Floor 6mm, side Wall € Conopy Tailgate 4mm.
ULW 1260Kgs
