Additional Information

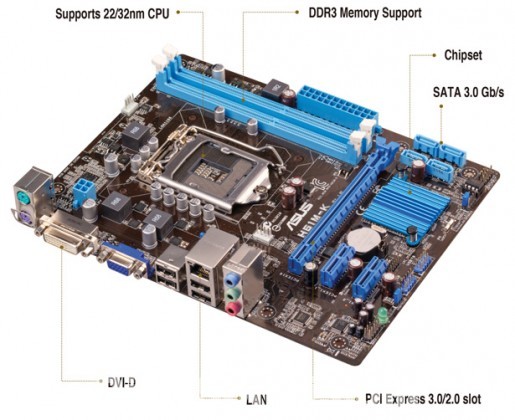

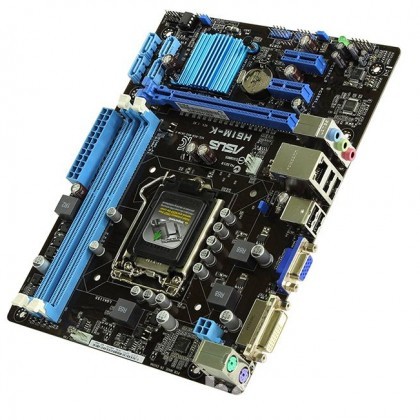

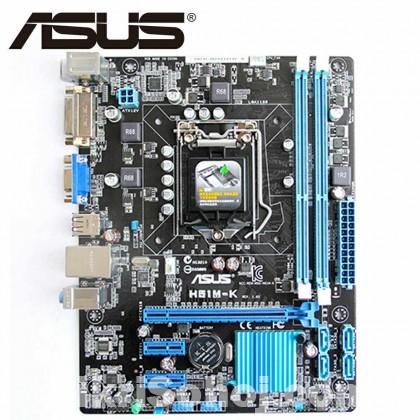

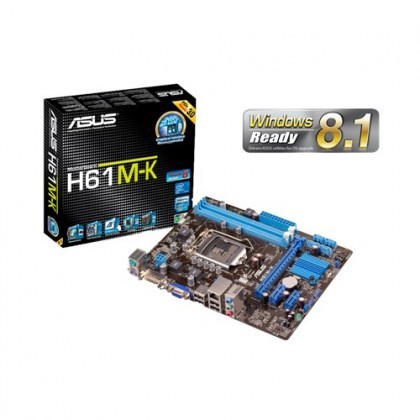

Model Asus H61M-K
Chipset Intel H61
Generation 3rd
Sockets Supported LGA1155
Supported CPU 3rd Gen. Intel Core i7/ i5/ i3 Processors
Memory Slot 2
Memory Max. 16GB
Memory Type DDR3 DIMM
Memory MHz 1333/1066MHz
Memory Channel Dual
Storage Interface 3Gb/s
SATA Port 4 x SATA
Form Factor uATX
Graphics Chipset Integrated Graphics
PCI Express Slot 1 x PCI Express 3.0/2.0 x16, 2 x PCI Express 2.0 x1
LAN Chipset Realtek 8111F
LAN Speed (Mbps) 10/100/1000Mbps
VGA Port 1
DVI Port 1
USB Port 8 x USB2.0
BIOS Model UEFI BIOS
BIOS Version PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0
Audio Chipset. Realtek ALC887 High Definition Audio
Audio Channel 8
BIOS Type 1 x 64 Mbit Flash ROM
Optane Memory Support No
Warranty 3 year
